Key Features & Benefits
Fast and Efficient - dual-header Design
It can label both sides of the product simultaneously, which is 5 to 10 times more efficient than manual labeling.Powerful function. It can be used for labeling the sides, curved surfaces and flat surfaces of various workpieces, and can also be used for labeling irregular workpieces and containers.
Precision Control with Advanced Sensors
Equipped with German SICK label sensors and a Japanese Panasonic product sensor, the machine maintains ±1mm labeling accuracy. The top belt and guiding devices ensure bottles remain stable and aligned during labeling.
Robust Construction & Easy Adjustment
Built with stainless steel and aluminum alloy, the FK911 is durable and easy to maintain. The adjustment base allows quick changes to labeling position, angle, and height to accommodate various bottle shapes.
User-Friendly Touchscreen & Safety Features
The MCGS touchscreen provides intuitive control over all labeling parameters. Emergency stop switches and a well-organized electric box enhance operator safety and machine reliability.
Optional Features and Components
Thermal coding / inkjet printing function, automatic feeding function; automatic receiving function (considered in conjunction with production); Special label sensor.
Technical Specifications
Parameter | Specification |
Model | FK911 |
Labeling Accuracy | ±1mm |
Labeling Speed | Stepper: 30–160 bottles/min; Servo: 40–180 bottles/min |
Applicable Bottle Dimensions | Length: 20–250mm; Width: 30–100mm; Height: 60–280mm |
Label Dimensions | Length: 15–200mm; Width (paper): 15–120mm |
Label Roll Core Diameter | 76mm (standard) |

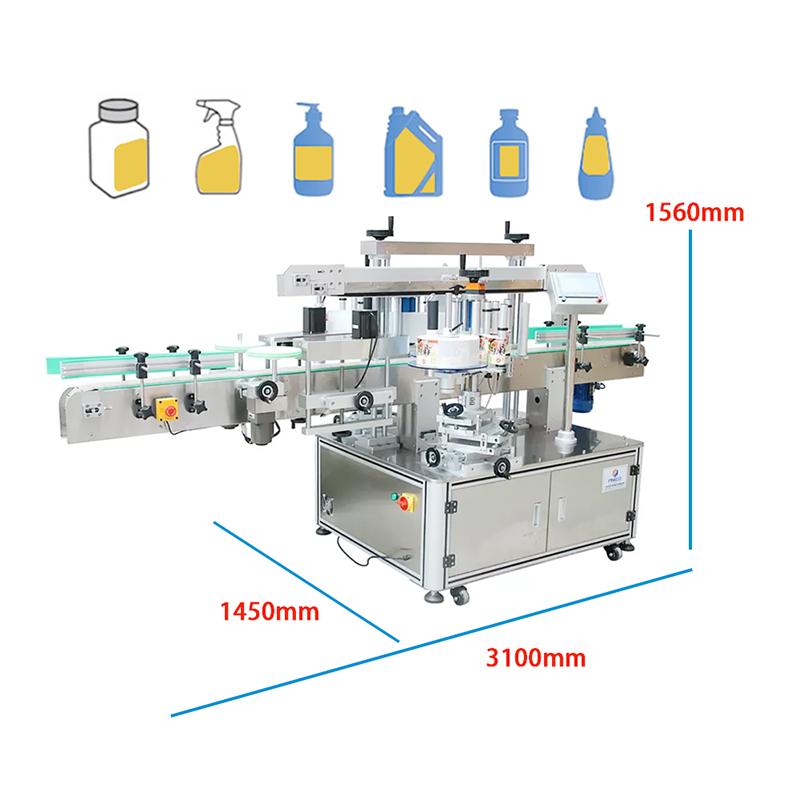

Machine Dimensions | 3100mm × 1450mm × 1560mm (L × W × H) |
Machine Weight | Approx. 330kg |
Power Supply | 220V / 50–60Hz / 2070W |
Application Scenarios
Beverage Industry:
Ideal for labeling water, juice, and soda bottles with nutritional info, barcodes, or promotional labels on both sides.
Cosmetics & Personal Care:
Suitable for shampoo, lotion, and cosmetic containers requiring ingredient lists and branding on front and back.
Household Chemicals:
Used for detergent, cleaner, and oil bottles with safety warnings and usage instructions on dual sides.
Food & Sauce Packaging:
Perfect for squeezable bottles, jars, and condiment containers with labels on front and back for bilingual or regulatory info.
Working Principles Of Sticker Labeling Machine
Core Working Principle:
The sensor detects the passing of the product and sends back a signal to the labeling control system. At the appropriate position,the control system controls the motor to send out the label and attach it to the labeling position of the product.The product flows through the labeling device, the label is rolled over, and a label The attaching action is completed;
Operation Process:
Put products—>product delivery (automatically realized by equipment)—>labeling (automatically realized by equipment)—>collect labeled products.
FAQ
Q1: Can this machine handle round and square bottles?
A: Yes, the adjustable guiding system and top belt device stabilize both round and rectangular containers for consistent labeling.
Q2: What is the difference between the stepper and servo versions?
A: The servo version offers higher speed (up to 180/min) and smoother motion control, ideal for high-precision applications. The stepper version is cost-effective for standard speeds.
Q3: Is training provided after purchase?
A: Yes, we provide a detailed manual, video tutorial, and optional online or on-site training for your operators.
Q4: What is your after-sales support policy?
A: We offer a 12-month warranty, lifetime technical support and 24-hour remote assistance. Spare parts are always available.
