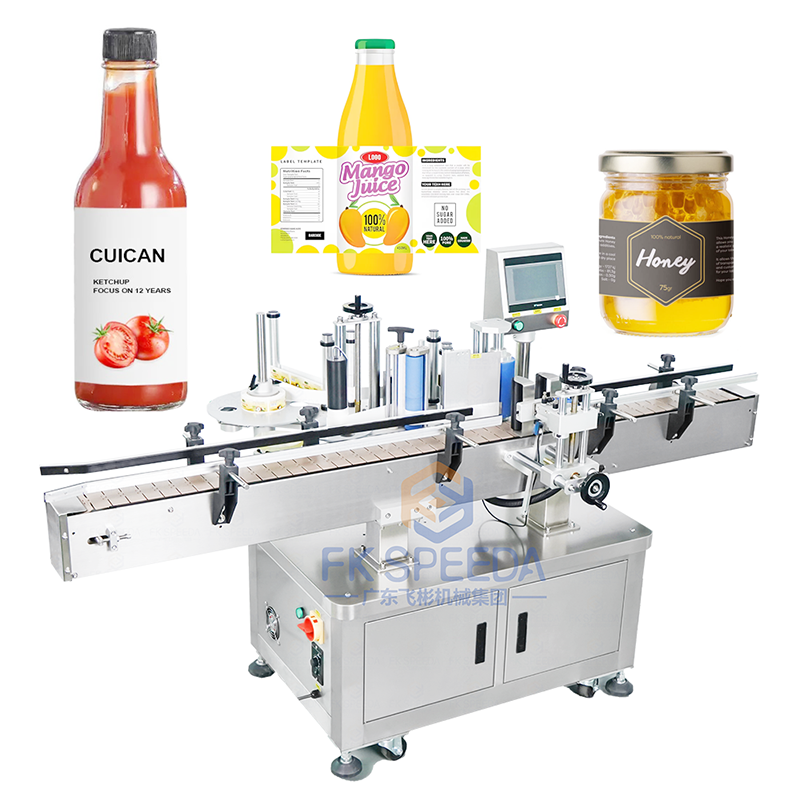

705 Automatic Vertical Bottle Labeling Machine

FK805 Automatic Vertical Positioning Round Bottle Labeling Machine

The FK705 fully automatic vertical round bottle labeling machine is designed for large-volume needs. It can quickly switch between bottles of different sizes, with simple, neat, and aesthetically pleasing labeling that is clean and easy to wash. It can apply single or double labels, with flexible adjustment of the distance between front and back labels. It is an ideal choice for food, beverage, cosmetics, and pharmaceutical industries This machine features a robust conveyor system, precise bottle placement, and an intuitive touchscreen interface, ensuring seamless integration and reliable performance.

Availability:

Quantity:



Inquire Add to Basket

Functional Characteristics

Precise Positioning & Stable Operation

Automatic bottle dispensing uses a spring-type dispensing mechanism to effectively eliminate bottle-specific errors that cause uneven dispensing, improving stability and label overlap. It is equipped with a top pressure mechanism combined with a 3-axis positioning mechanism to eliminate bottle fluctuations and improve labeling accuracy

User-Friendly Touchscreen Control

The intuitive MCGS touch screen allows operators to easily adjust label parameters, store multiple product settings, and monitor machine status Daily operation does not require advanced skills. Parameter modification is intuitive and clear, with easy switching between various functions.

Robust Construction & Reliable Components

Built with stainless steel, aluminum alloy, and high-quality electrical parts (Panasonic PLC, Leadshine motors), the machine ensures durability and long-term performance in demanding environments.

Flexible Integration & Expandability

With automatic shutdown function, production counting function, power-saving function, supports integration with encoders, laser marking, vision inspection systems, and other auxiliary equipment to adapt to various production line layouts and labeling requirements

Application Scenarios

Beverage & Food Packaging: Ideal for labeling water bottles, sauce containers, and beverage bottles on high-speed filling lines with consistent accuracy.

Cosmetic & Personal Care Products: Suitable for labeling lotion bottles, shampoo containers, and skincare products, ensuring clean and professional presentation.

Pharmaceutical & Chemical Industries: Used for labeling medicine bottles, chemical drums, and laboratory containers with precise and compliant label placement.

Technical Specifications

Parameter	Specification
Labeling accuracy	±1mm
Model	FK705
Labeling Accuracy	±1mm
Labeling Speed	40–100 bottles/min (depending on product and label size)
Suit label size(mm)	L：20mm～290mm W：20mm～160mm
Applicable power	220V/50HZ
Weight of the machine	about 350KG

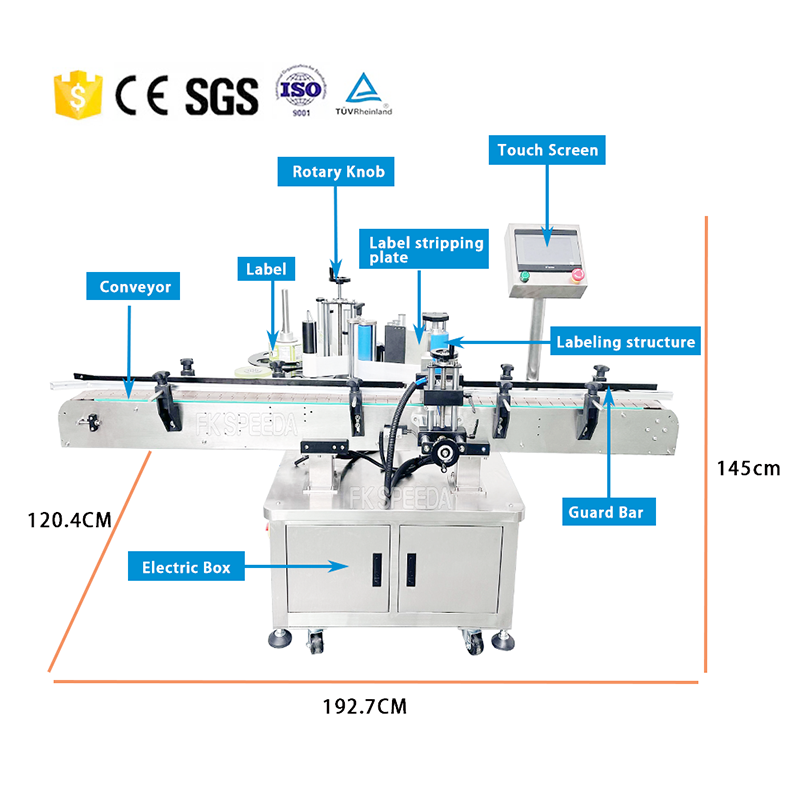

Device dimensions	1927mm×1204mm×1450mm
Control System	Touchscreen (MCGS) + Panasonic PLC
Certification	ISO 9001 compliant; CE standard components
