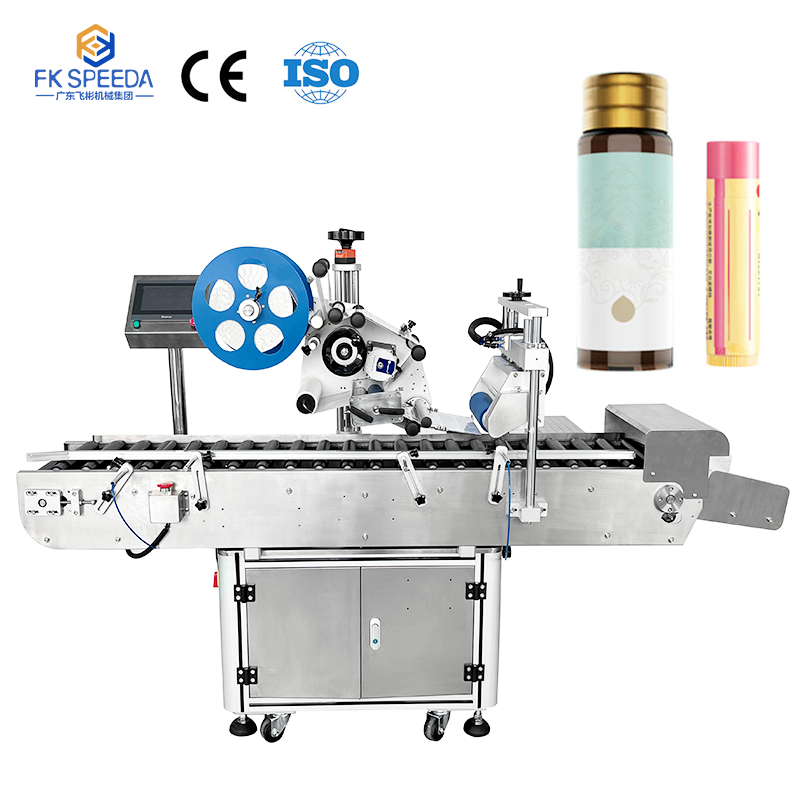

FK807 Automatic Horizontal Round Bottle Labeling Machine

Automatic Horizontal Round Bottle Labeling Machine Application Scope: Suitable for labeling the circumferences or half-circumferences of unstable cylindrical objects. It adopts a horizontal conveying and labeling method to enhance stability and improve labeling efficiency. For example, it can be used for labeling small bottles such as glass round tubes, sampling tubes, steel pipes, etc., which are slender cylindrical or conical products. It is highly suitable for applications in industries such as cosmetics, pharmaceuticals, electronics, and stationery, and can enhance the automation level of the production line and improve the display effect of the products.

Model:
FK807
Brand:
FK SPEEDA

Availability:

Quantity:



Inquire Add to Basket

Functional Characteristics

High-Speed & Accurate Operation with Advanced Control

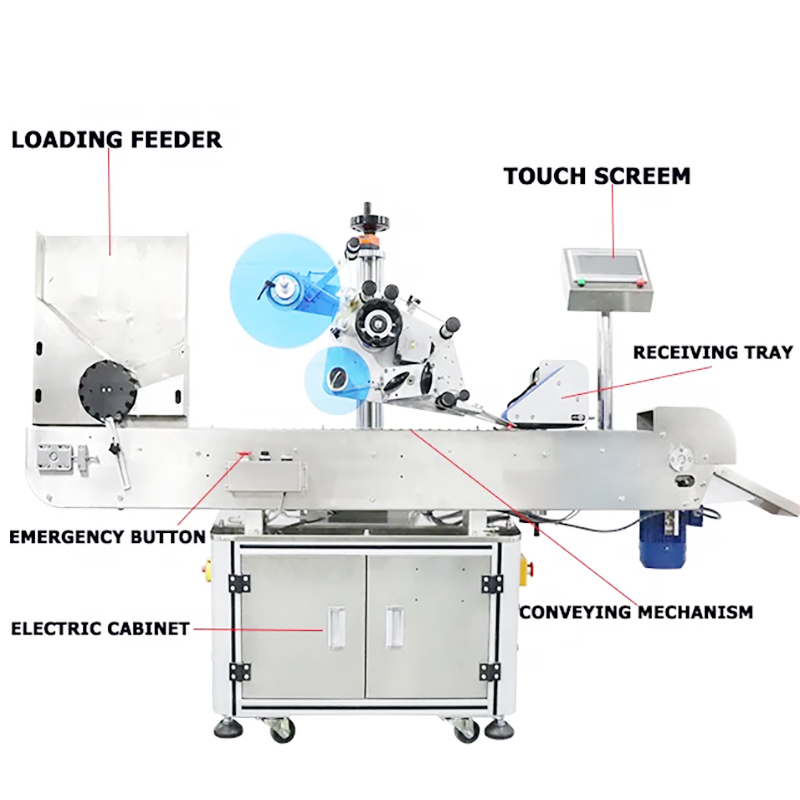

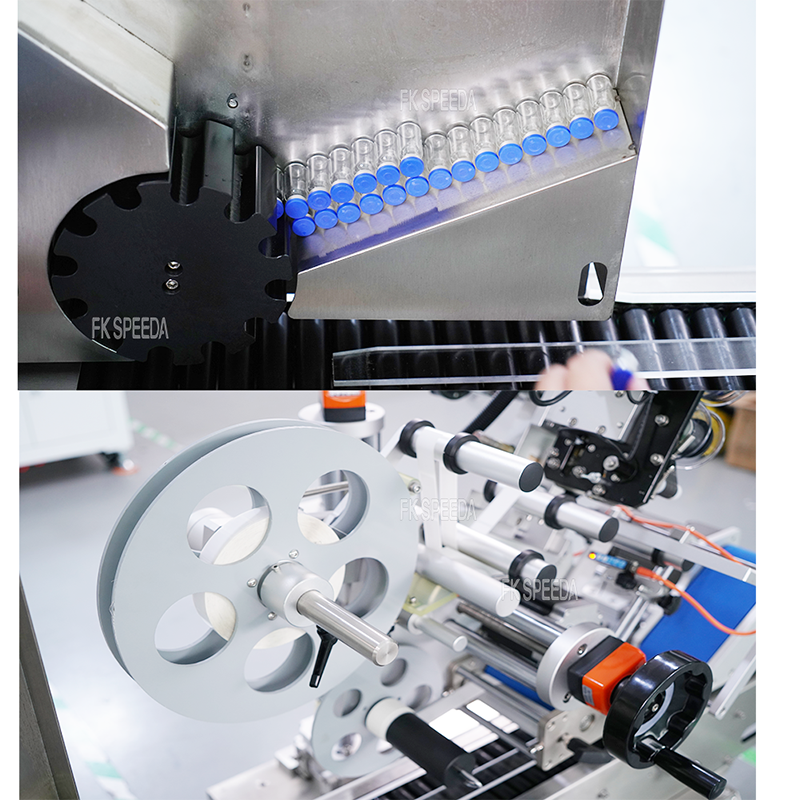

The side-lying drum conveying system is adopted, with the conveying chain inclined. The bottles are automatically aligned, ensuring stable conveying and labeling. The labeling speed can reach up to 60 to 180 bottles per minute, significantly reducing labor and material costs

Flexible Adjustment and Customizable Design

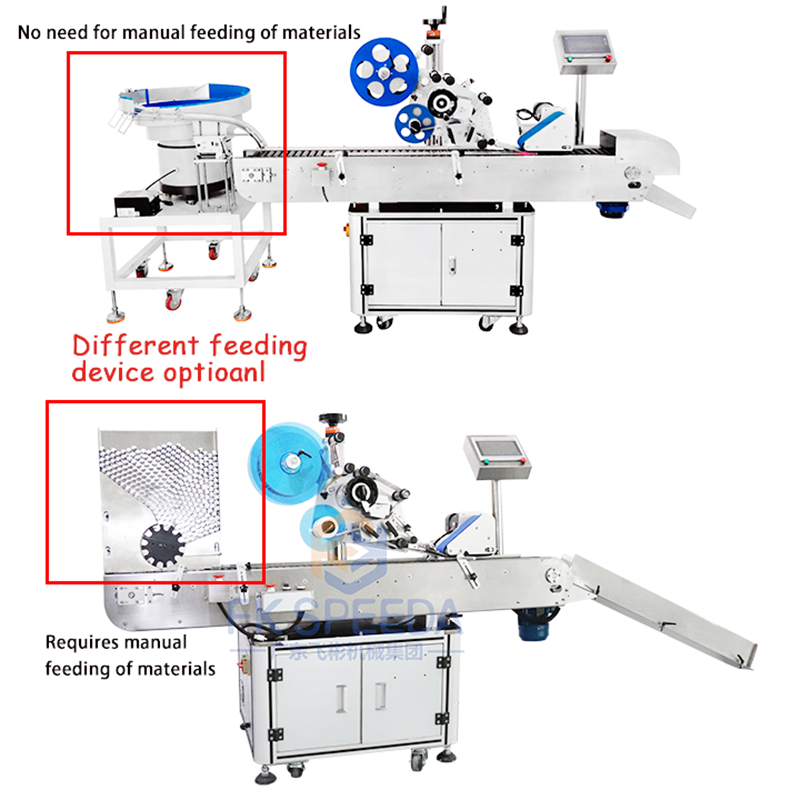

The labeling head features multi-directional adjusters (height, angle, front-back) for quick adaptation to different product sizes. Furthermore, the machine and its feeding mechanism can be fully customized based on your specific product samples, offering a tailored labeling solution.

Intelligent Control, with High Stability

The advanced electrical control system composed of Panasonic PLC, kunlun tongtai touch screen, Panasonic needle-type photoelectric eye, and German SICK measuring light eye enables the equipment to operate at high speed for 7×24 hours.

Technical Specifications

Parameter	Specification
Model	FK807
Labeling Accuracy	±1 mm (Excluding product & label error)
Labeling Speed	60 to 180 pieces per minute (dependent on product size)
Applicable Product Diameter	φ10 mm – φ30 mm
Applicable Label Size	Length: 20 – 250 mm; Width (on roll): 20 – 110 mm

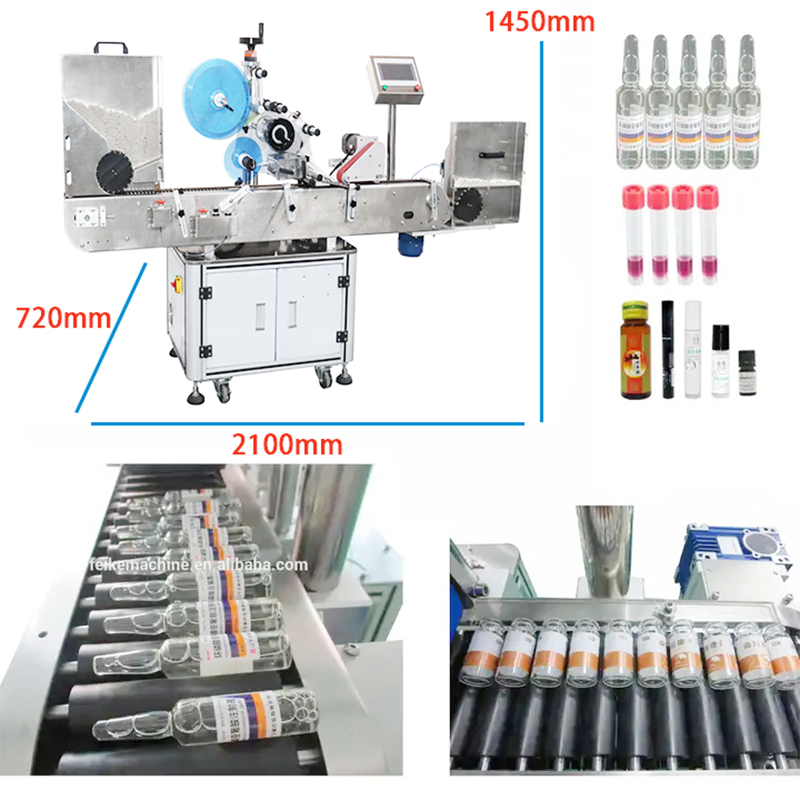

Machine Dimensions (LWH)	Approx. 2100 * 720 * 1450 mm
Machine Dimensions (LWH)	Approx.1981mm × 700mm × 1396mm (length × width × height)
Power Supply	220V / 50-60 Hz / 940W
Machine Net Weight	Approx. 200 KG

Application Scenarios

Cosmetics & Personal Care
Perfect for labeling lip gloss tubes, perfume samples, mascara wands, and small cosmetic jars. The gentle horizontal handling prevents tipping and ensures flawless label placement on delicate containers.

Pharmaceuticals & Laboratory
Ideal for labeling vials, ampoules, specimen tubes, and small medicine bottles. The precision and cleanliness of the system make it suitable for environments with strict labeling requirements.

Electronics & Hardware
Efficiently labels batteries , pens, markers, glue sticks, and other cylindrical electronic components or stationery items, enhancing brand identification and professionalism.
