Key Features & Advantages

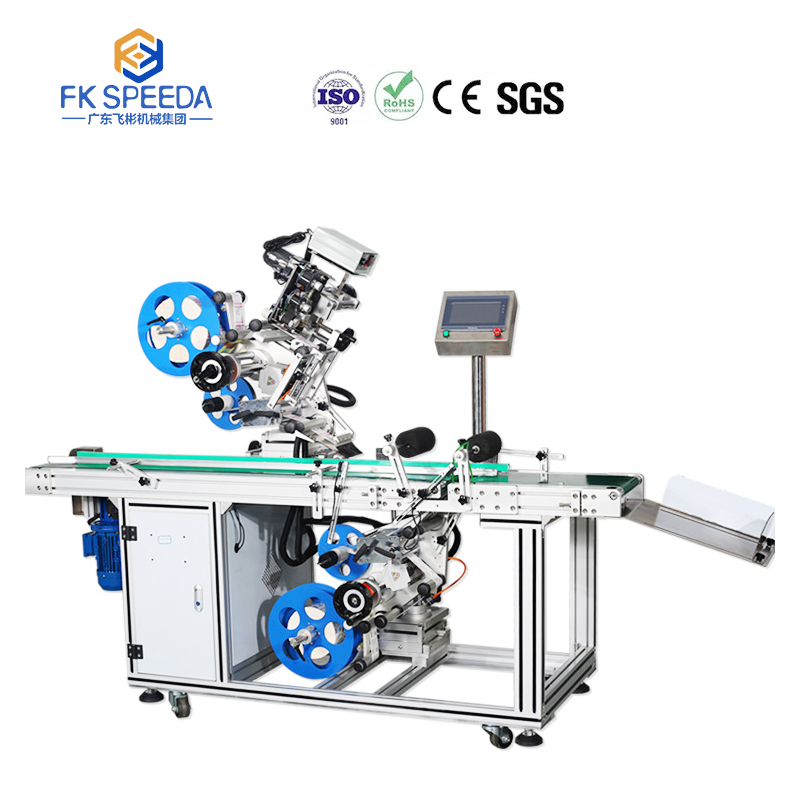

Powerful function. The labeled products can automatically flip 180 degrees to complete the labeling of the top and bottom sides of the object at one time. It has functions such as production counting, power-saving, production count setting prompt, parameter setting protection, and is convenient for production management.
The application is flexible. It can be produced either individually or in a continuous production line. The production site layout is simple and disconnection and connection are possible. Two labeling machines can work independently.
The adjustment is simple and sturdy .Design a 6-degree-of-freedom adjustable base. The conversion between different products becomes simple and time-saving. It can flexibly match different production lines. The three-bar adjustment mechanism is adopted, fully leveraging the stability of the triangle, making the entire machine sturdy and durable.
High labeling accuracy. The labeling is driven by a stepper motor or a servo motor, ensuring precise labeling. The label winding correction mechanism is designed to prevent the label from deviating left or right during the traction process. The eccentric wheel technology is applied to the traction mechanism, preventing the label from slipping during traction and ensuring precise label output.
Technical Specifications
Parameter | Specification |
Model | FK814 |
Labeling Speed | 40 - 120 pieces per minute (dependent on product size) |
Labeling Accuracy | ±1mm |
Applicable Product Dimensions | L: 40–400mm, W: 20–200mm, H: 0.2–150mm |
Applicable Label Dimensions | L: 6–250mm, W: 15–130mm |
Machine Dimensions (L×W×H) | Approximately 1600mm × 780mm × 1400mm (length × width × height) |
Machine Weight | About 180 kg |
Power Supply | 220V, 50/60 Hz |
Core working principle: Place the product onto the conveyor belt. The sensor detects the product passing by and transmits the signal back to the labeling control system. After the signal is processed by the PLC, a label is sent to be attached at the designated position of the product at the appropriate time. The product flows through the labeling device, and the label is firmly attached. The labeling action of one label is completed.
Operation process: Place the product (on the assembly line)-> Product transportation -> Product detection -> Labeling (on the upper surface)-> Labeling fixation -> Product flipping (automatically completed by the equipment) -> Product transportation -> Product detection -> Labeling (on the lower surface) -> Labeling fixation -> Collect the labeled products (flow into the next assembly line)
Application Scenarios
1. Food & Beverage Industry
Ideal for labeling bottles, jars, and packaged food items. The machine handles various container shapes and sizes, ensuring labels are applied neatly and securely even on curved surfaces.
2. Cosmetic & Personal Care Products
Perfect for lotion bottles, shampoo containers, and skincare packaging. The gentle yet precise labeling mechanism prevents damage to delicate containers while maintaining high-speed operation.
3. Pharmaceutical & Chemical Packaging
Suitable for medicine bottles, chemical containers, and laboratory products. The machine supports compliant labeling with consistent placement, essential for regulatory and safety standards.
4. Home Care & Industrial Goods
Used for detergent bottles, lubricant containers, and hardware products. The robust design handles heavier containers and harsh environments without compromising labeling quality.
