Features of Semi-automatic Round Bottle Labeling Machine

FK603 Semi-Automatic Round Bottle Labeling Machine

FK-603 Semi-Automatic Labeling Machine is a high-precision, stable, and versatile labeling solution capable of performing full-wrap, half-wrap, and even dual-side labeling for products. The spacing between front and rear labels is easily adjustable. Designed for various cylindrical and conical products such as bottles, jars, and vials, it delivers labeling accuracy within ±0.5mm at a speed of 20–35 bottles per minute. Suitable for products with diameters ranging from 10mm to 150mm, it is widely used in industries including food, cosmetics, chemicals, beverages, and pharmaceuticals.

Availability:

Quantity:



Inquire Add to Basket

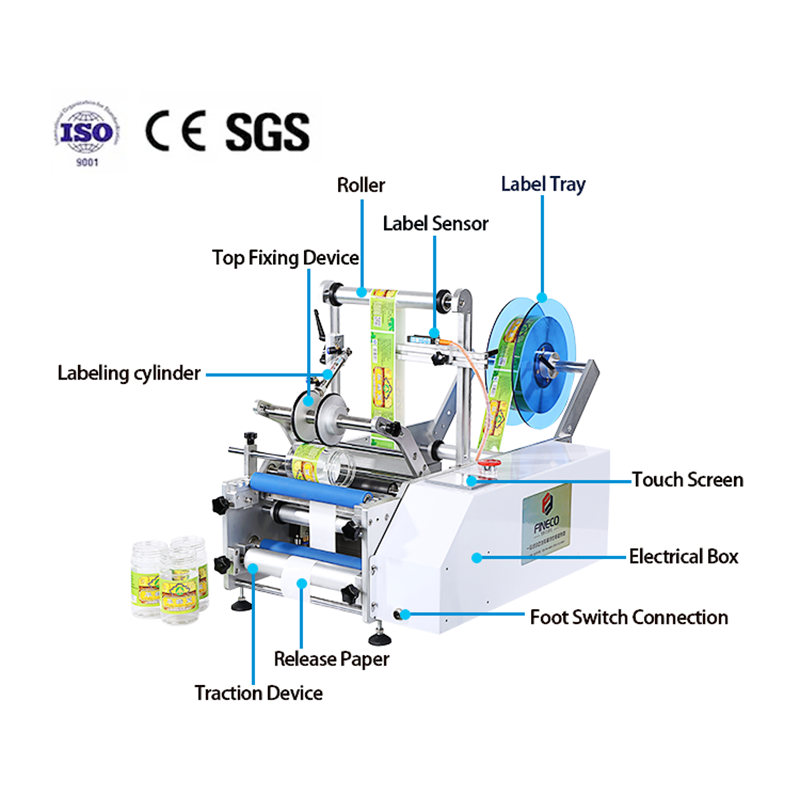

Product Advantages and Features

High-precision labeling with an error of only ±0.5mm

FK-603 utilizes German SICK label sensors and Japanese Panasonic product sensors to ensure precise label placement. This accuracy is crucial for industries like pharmaceuticals and cosmetics, where label positioning impacts brand consistency and compliance.

Humanized operation, touch screen control

Operation System: Color touch screen, directly visual interface easy operation. Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.

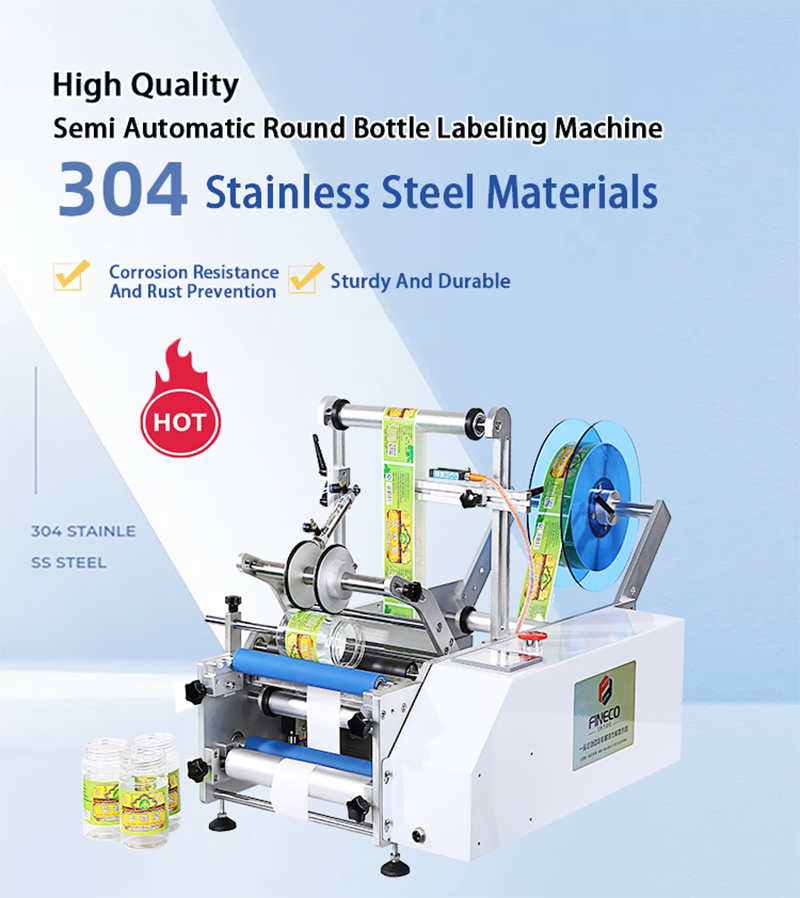

High-quality components, durable and reliable

FK-603 uses all its machinery and components made of stainless steel and anodized high-grade aluminum alloy. It has excellent corrosion resistance and never rusts. This ensures long-term reliability. The machine comes with a one-year warranty and lifetime technical support.

Strong compatibility, supporting multiple bottle types and labels

The machine features adjustable labeling positions, coping devices, and rubber-covered rollers to accommodate various container shapes and sizes. It supports label rolls with inner diameters of 76mm and outer diameters up to 300mm.

Highly efficient and stable, with a labeling speed of up to 35 bottles per minute

Equipped with a Leadshine traction motor and adjustable speed control, the machine maintains consistent performance even during continuous operation. This enhances production efficiency while reducing labor costs.

Technical Parameters

Machine Type	FK603
Labeling Accuracy	±0.5mm
Labeling Speed	15-30bottles/min
Applicable Product Diameter (for Round Bottles)	φ10mm – φ150mm
Suit label size(mm)	L:20~290;W(H):15~130
Voltage	220V / 50Hz / 120W Can be customized
Machine Size (LengthWidthHeight)	920mm × 470mm × 500mm
total weight	45kg
Inner Diameter of Label Roll	76mm
Label Outer Diameter	≤300mm
Applicable Label Size	Length: 20-380mm, width: 20-220mm
Label Specification	Adhesive sticker,transparent or opaque

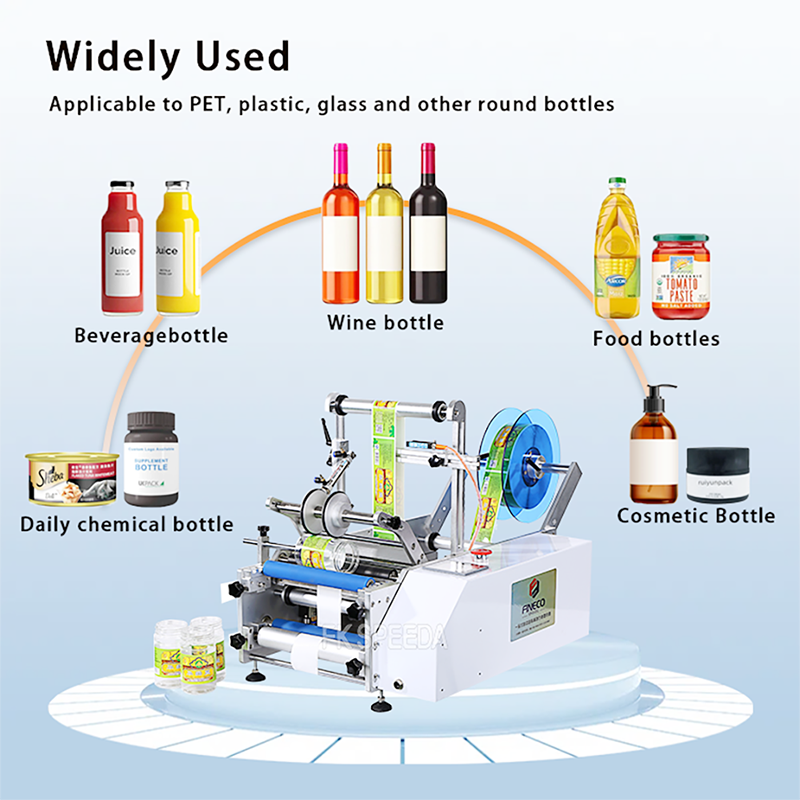

Application Scenarios

Cosmetics & Personal Care: Perfect for labeling perfume bottles, cream jars, and serum containers with consistent placement and no wrinkles.

Pharmaceutical Packaging: Suitable for medicine bottles and reagent containers, meeting GMP standards with precise and clean labeling.

Food & Beverage: Ideal for sauce bottles, beverage containers, and other round packaging in food-grade production environments.

Product Operate Guide

Connect the machine to a 220V power source and air supply.

Place the label roll on the label tray and thread it through the roller and peeling plate.

Adjust the product positioning rod and coping device according to your container size.

Set labeling parameters (speed, position, etc.) via the touchscreen.

Press the foot switch or enable auto mode to start labeling.

For detailed instructional videos and the complete manual please contact us.

FAQ

Q1: Can the machine handle transparent labels?
A: The prices listed on our website are applicable to our standard transparent label sensors. It may not be able to detect transparent labels. If you are using transparent labels, please contact us to replace the sensor. Transparent sensor: Both regular labels and transparent labels can be used, but the price is slightly higher.

Q2: What is the lead time after payment?
A: For standard machines, we confirm that delivery will be made within 7 days after receiving your deposit. Before each machine is shipped, we will conduct communication tests and take video recordings to verify.

Q3: Do you provide installation support?
A: Yes, we provide an installation video and manual. Remote guidance is also available via email or video call.

Q4: Is customization available for non-round containers?
A: The standard model is designed for round bottles. If you need customization, we can provide customized solutions according to your requirements. Customization is our core strength. We have a research and development team of over 30 people.
