Semi Double Automatic Sides Labeling Machine High Speed Electric Labeling Machine for Square Bottles Flat Bottles

FK617 High Accuracy Semi Automatic Flat Labeling Machine for Square Box Packaging Surface Sticker

Semi Double Automatic Sides Labeling Machine High Speed Electric Labeling Machine for Square Bottles Flat Bottles

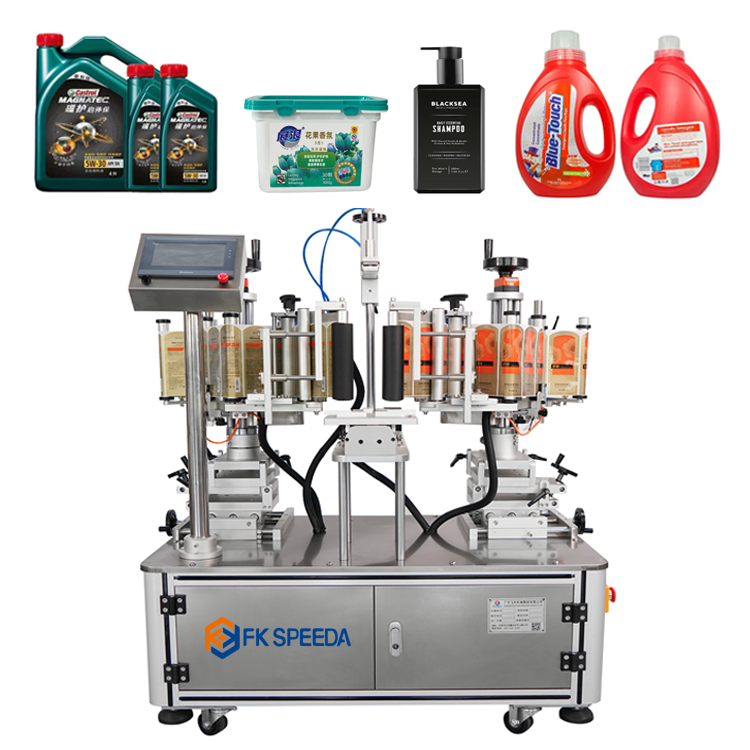

FK909 Semi Automatic Double-sided Labeling Machine

The semi-automatic double-sided labeling machine adopts the rolling labeling method and can perform double-sided labeling simultaneously. It offers excellent accuracy and versatility, and is specifically designed for small and medium-sized production runs. It is widely used for high-precision labeling on shampoo bottles, square bottles, gas cylinders, laundry detergent flat bottles, square or round products:
The label tape coding machine can be installed at the head of the labeling machine, and can simultaneously print production batch numbers, production dates and expiration dates. This reduces packaging processes and significantly improves production efficiency.

Model:
FK909
Brand:
FK SPEEDA

Availability:

Quantity:



Inquire Add to Basket

909-2

Ultra-High Precision Dual-Side Labeling: Achieves exceptional labeling accuracy of ±0.5mm on both sides simultaneously, ensuring perfectly symmetrical label placement.
Versatile Product Compatibility: Accommodates a wide range of product shapes including flat, square, round, and irregular containers. the machine adapts to diverse packaging requirements through customizable fixtures.
Flexible Operation Modes: Offers both manual and automatic operation via foot switch control
Flexible Operation Modes: Offers both manual and automatic operation via foot switch control. In automatic mode, the Panasonic product sensor detects bottle presence and automatically triggers the labeling cycle

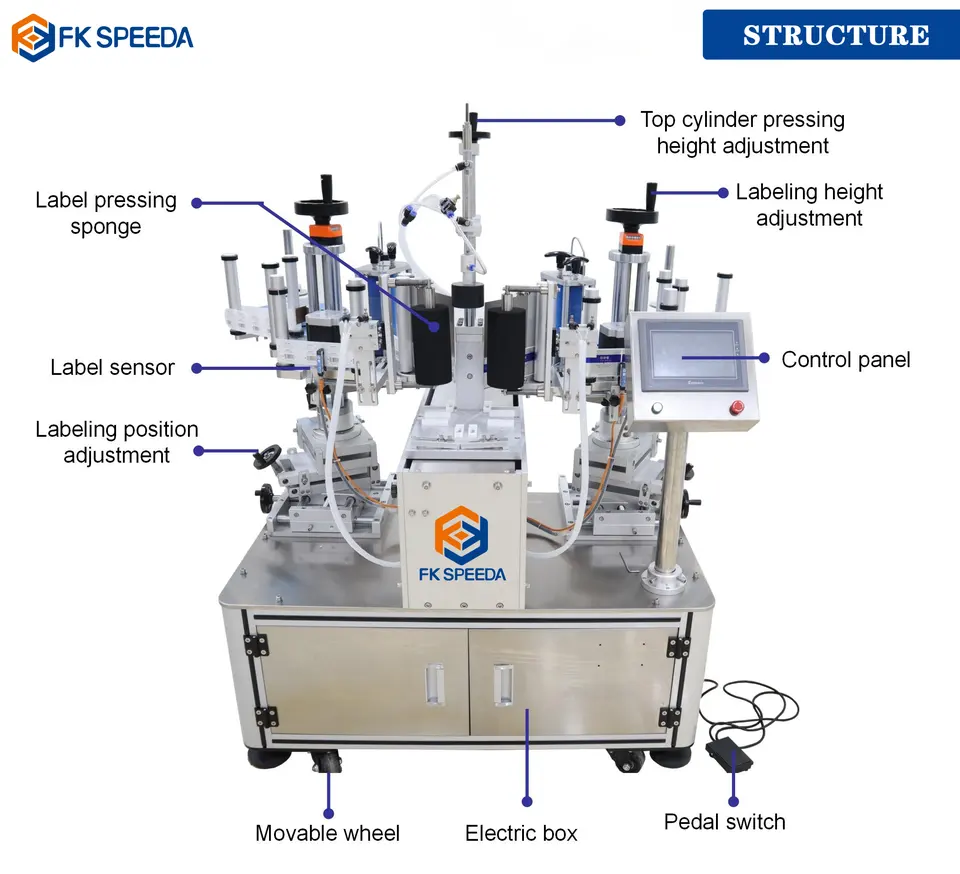

Comprehensive Adjustment Capabilities: Features multi-directional adjustment options including vertical height adjustment, forward-backward positioning, left-right movement, and label sensor frame adjustment
Optional Coding Integration: Can be equipped with a hot stamp coder for printing production dates, expiry dates, and batch numbers directly onto labels during application
Intelligent Control Interface: Features a user-friendly Samkoon touch screen with 50 programmable product parameter groups. Operators can save settings for different products and recall them instantly, reducing setup time and eliminating manual adjustment errors.

Application

(1)Applicable labels: self-adhesive labels, self-adhesive films, electronic supervisioncodes, bar codes, etc.

(2) Applicable products: Square bottle, Elliptical bottle, flat bottle, etc.(3) Application industry: widely used in food, electronics,hardware,plastic and otherindustries.

909细节2

Technical Specifications

Machine Type	FK909
Label Specification	adhesive sticker, transparent or opaque
Labeling Tolerance	±1mm
Capacity(pcs/min)	40 ~120
Applicable Product Size (L×W×H)	Length: 20-200mm; Width: 20-150mm; Height: 0.2-280mm
Applicable Label Size (L×W)	Length: 6-150mm; Width: 15-180mm
Applicable Label Roll	Inner diameter: 76mm; Outer diameter: ≤280mm
Machine Weight	Approx. 150 KG
Power Supply	220V/50(60)HZ
Machine Dimensions (L×W×H)	Approx. 960×560×930mm
