Product Advantages and Features
High-precision labeling with an error of only ±0.5mm

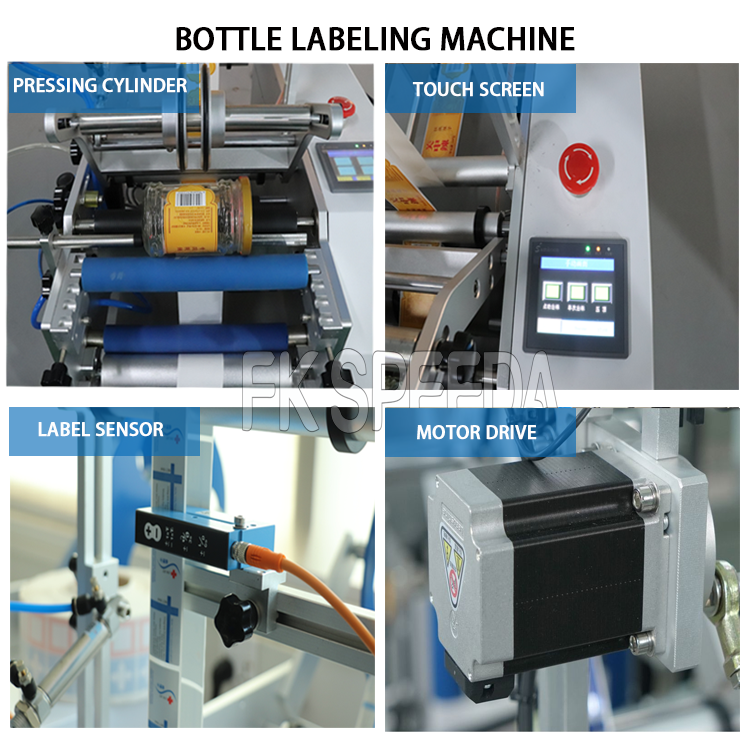

FK-603 utilizes German SICK label sensors and Japanese Panasonic product sensors to ensure precise label placement. This accuracy is crucial for industries like pharmaceuticals and cosmetics, where label positioning impacts brand consistency and compliance.
Humanized operation, touch screen control
Operation System: Color touch screen, directly visual interface easy operation. Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.
High-quality components, durable and reliable

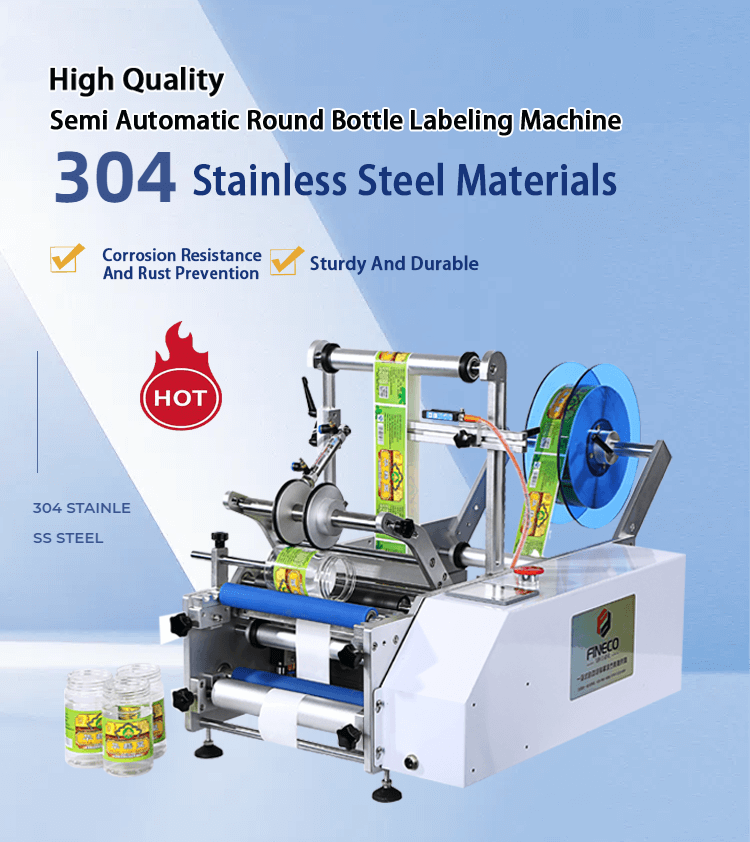

FK-603 uses all its machinery and components made of stainless steel and anodized high-grade aluminum alloy. It has excellent corrosion resistance and never rusts. This ensures long-term reliability. The machine comes with a one-year warranty and lifetime technical support.
Strong compatibility, supporting multiple bottle types and labels
The machine features adjustable labeling positions, coping devices, and rubber-covered rollers to accommodate various container shapes and sizes. It supports label rolls with inner diameters of 76mm and outer diameters up to 300mm.
Highly efficient and stable, with a labeling speed of up to 35 bottles per minute

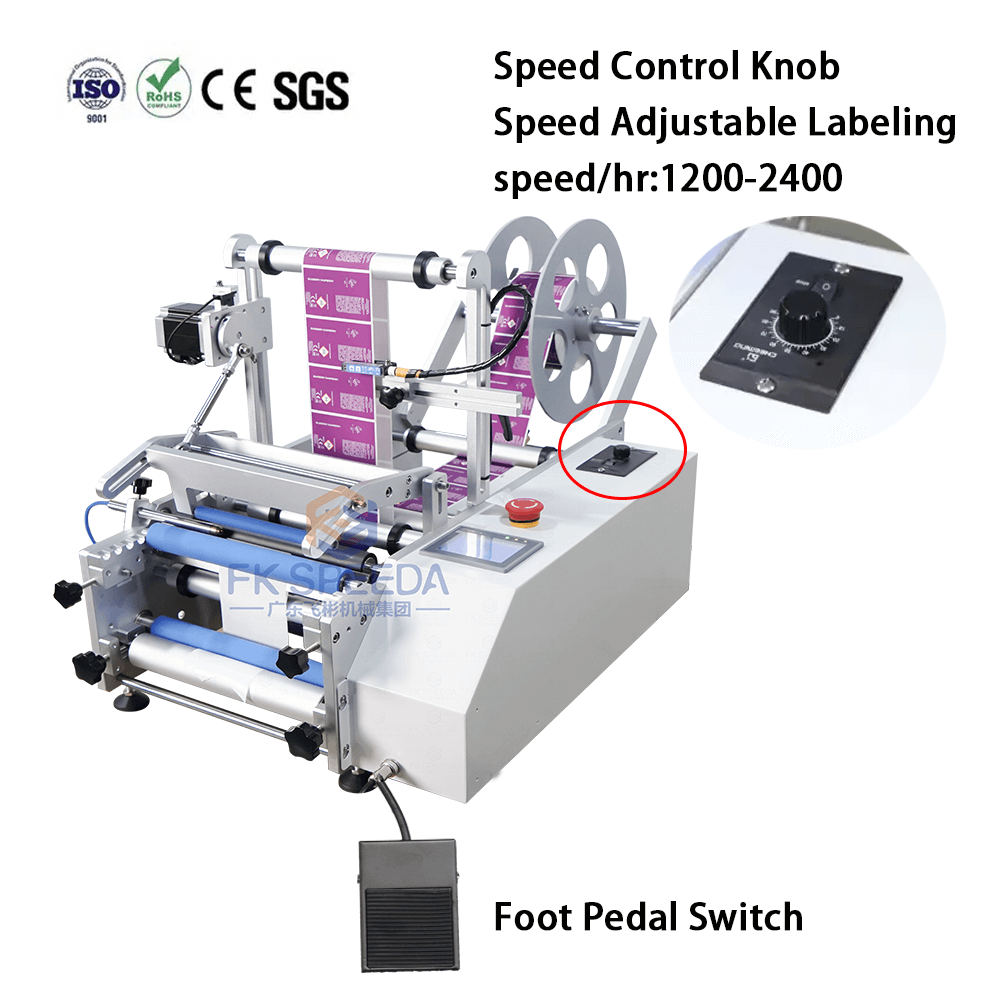

Equipped with a Leadshine traction motor and adjustable speed control, the machine maintains consistent performance even during continuous operation. This enhances production efficiency while reducing labor costs.
Technical Parameters
Machine Type | FK603 |
Labeling Accuracy | ±0.5mm |
Labeling Speed | 15-30bottles/min |
Applicable Product Diameter (for Round Bottles) | φ10mm – φ150mm |
Suit label size(mm) | L:20~290;W(H):15~130 |
Voltage | 220V / 50Hz / 120W Can be customized |

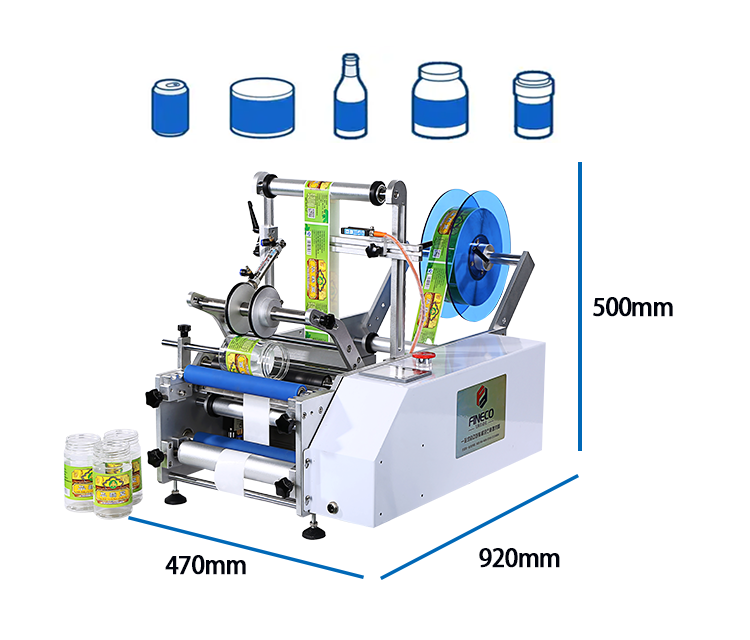

Machine Size (Length*Width*Height) | 920mm × 470mm × 500mm |
total weight | 45kg |
Inner Diameter of Label Roll | 76mm |
Label Outer Diameter | ≤300mm |
Applicable Label Size | Length: 20-380mm, width: 20-220mm |
Label Specification | Adhesive sticker,transparent or opaque |

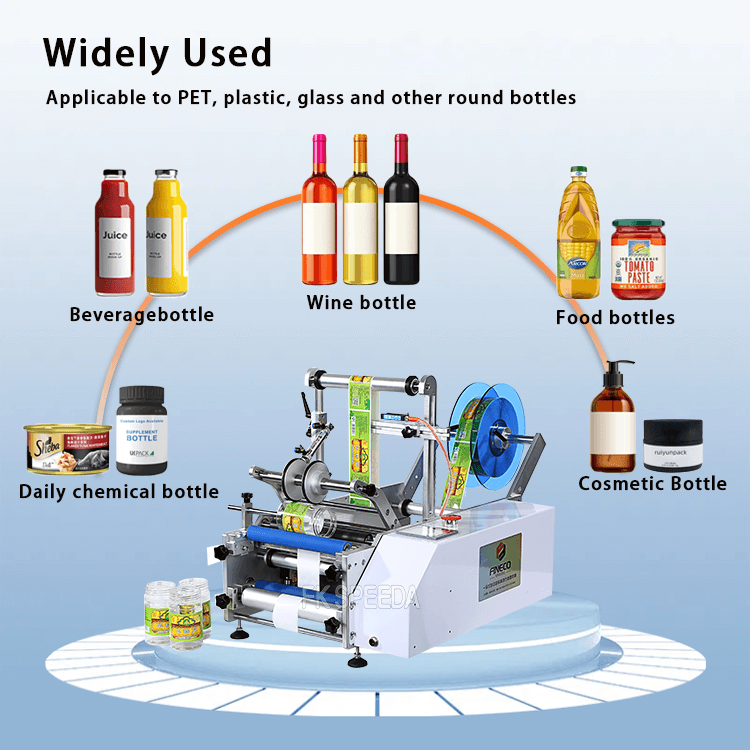

Application Scenarios
Cosmetics & Personal Care: Perfect for labeling perfume bottles, cream jars, and serum containers with consistent placement and no wrinkles.
Pharmaceutical Packaging: Suitable for medicine bottles and reagent containers, meeting GMP standards with precise and clean labeling.
Food & Beverage: Ideal for sauce bottles, beverage containers, and other round packaging in food-grade production environments.
Product Operate Guide
Connect the machine to a 220V power source and air supply.
Place the label roll on the label tray and thread it through the roller and peeling plate.
Adjust the product positioning rod and coping device according to your container size.
Set labeling parameters (speed, position, etc.) via the touchscreen.
Press the foot switch or enable auto mode to start labeling.
For detailed instructional videos and the complete manual please contact us.
FAQ
Q1: Can the machine handle transparent labels?
A: The prices listed on our website are applicable to our standard transparent label sensors. It may not be able to detect transparent labels. If you are using transparent labels, please contact us to replace the sensor. Transparent sensor: Both regular labels and transparent labels can be used, but the price is slightly higher.
Q2: What is the lead time after payment?
A: For standard machines, we confirm that delivery will be made within 7 days after receiving your deposit. Before each machine is shipped, we will conduct communication tests and take video recordings to verify.
Q3: Do you provide installation support?
A: Yes, we provide an installation video and manual. Remote guidance is also available via email or video call.
Q4: Is customization available for non-round containers?
A: The standard model is designed for round bottles. If you need customization, we can provide customized solutions according to your requirements. Customization is our core strength. We have a research and development team of over 30 people.
