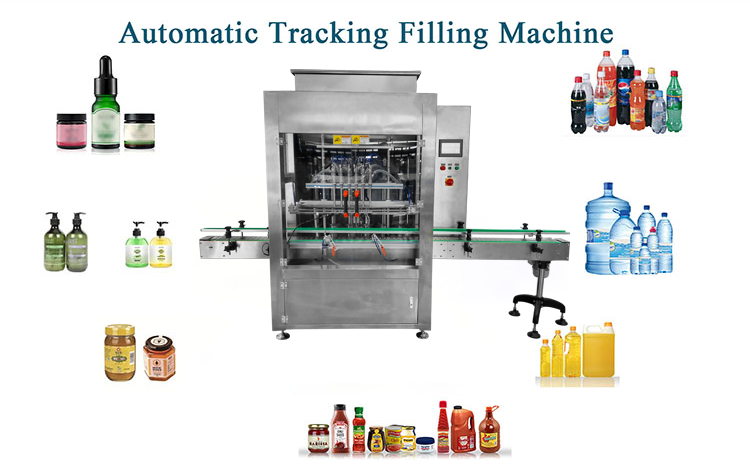

Fully automatic CNC flow meter quantitative liquid bottle filling machine

Functional Features

1. The transmission frequency converter and PLC establish communication, and the conveying speed can be directly set on the touch screen.

2. The vacuum suction filling nozzle prevents leakage and dripping.

3. The filling adopts a fast-slow dual-speed function, with a faster speed in the front and a slower speed at the back, ensuring accuracy while preventing liquid from spilling out of the bottle mouth.

4. The measurement method uses a flow meter for measurement, ensuring precise measurement.

5. The filling weight can be directly set on the touch screen, and each filling head can be directly set and adjusted according to the actual filling weight; when changing different specifications of products, the required formula can be directly called out without additional adjustments, greatly increasing the speed of machine adjustment.

6. The system can store 20 sets of filling parameter formulas. When changing different specifications of products, the required formula can be directly called out without additional adjustments, greatly increasing the speed of machine adjustment.

7. The entire equipment is made of SUS304 stainless steel sheet, meeting GMP requirements (customizable 316 stainless steel material).

Parameters

Application Scenarios

• Edible Oil Production: Ideal for filling vegetable oils such as soybean, rapeseed, peanut, and blended oils into PET bottles, tin cans, or plastic jugs. The high-speed dual-head models (FK-GL-10 to FK-GL-14) handle 5L containers efficiently, while smaller models excel at 2L and 1L bottles for retail packaging.

• Lubricant & Industrial Oils: Suitable for engine oils, hydraulic fluids, and gear oils in metal or plastic containers. The flow meter's robust design copes with varying viscosities, and the stainless steel construction resists chemical corrosion, ensuring long service life in workshops and factories.

• Food & Beverage Industry: Perfect for sauces, syrups, honey, juice concentrates, and other liquid food products. The hygienic design with easy-clean surfaces and drip-free nozzles meets food safety standards, making it a trusted choice for condiment and beverage manufacturers.

• Household & Chemical Products: Can be adapted for detergents, cleaning liquids, and personal care products like shampoo or lotion. The quick-change recipe system allows fast product switches, ideal for contract packers handling diverse SKUs.

• Pharmaceutical & Cosmetic Liquids: With optional 316 stainless steel and GMP compliance, the machine is suitable for filling syrups, mouthwashes, and cosmetic lotions where precision and cleanliness are paramount.

FAQ

Q1: What is the filling accuracy of this machine?
A: The machine achieves a filling accuracy of ±0.2%, thanks to the high-precision flow meter and PLC-controlled valve timing. This ensures consistent fill volumes and minimal product giveaway.

Q2: Can it handle different container sizes without changing parts?
A: Yes, the machine features quick-adjust guides and a recipe system. You can store up to 20 parameter sets and recall them instantly – no mechanical changeovers needed for different bottle heights or diameters.

Q3: How do you prevent dripping after filling?
A: Our nozzles incorporate a vacuum suck-back mechanism that retracts any residual liquid after each fill, keeping nozzles clean and preventing drips on containers or the conveyor.

Q4: What liquids is this machine suitable for?
A: It is designed for free-flowing liquids such as edible oils, lubricants, syrups, sauces, and chemical solutions. For highly viscous or chunky products, we recommend our piston filler series.

Q5: Is the machine easy to clean?
A: Absolutely. The machine is constructed from SUS304 stainless steel with smooth surfaces, and the filling nozzles are easily removable for cleaning. It complies with GMP requirements for food and pharmaceutical applications.

Q6: What after-sales support do you provide?
A: We offer a one-year warranty, lifetime technical support, and free spare parts for quality-related issues (excluding wear parts). Each machine comes with a manual and video guide, and our engineers are available for remote assistance.
