FK608 Desktop Automatic Horizontal Round Bottle Labeling Machine

1.Product Advantages & Highlights

• Exceptionally User-Friendly Operation: Designed with simplicity at its core, the FK608 features an automatic synchronization function and one-click automatic parameter calculation. Non-professionals can easily operate the machine without extensive training, as the system automatically sets multiple parameters, significantly reducing manual intervention and operational worries.

• Tool-Free Effortless Debugging: Every adjustment position is precision-engineered for tool-free operation. Operators can easily adjust part height, width, and positioning with simple finger movements. This intuitive mechanical design dramatically reduces changeover time between different bottle sizes, enhancing overall production flexibility.

• German Precision Label Sensing: Utilizes a high-quality German SICK label sensor renowned for its long-term operational stability and reliability. This sensor ensures high labeling precision while resisting burnout even during extended continuous operation, guaranteeing consistent performance and minimal downtime.

• High-Speed Production Efficiency: Achieves impressive labeling speeds of 100-300 pieces per minute, significantly boosting your production output. This high-speed capability, combined with ±1mm labeling accuracy, ensures your production line maintains both efficiency and precision without compromising quality.

• Versatile Application Adaptability: Specifically engineered for small cylindrical products with diameters from φ10mm to φ30mm. The machine accommodates label lengths from 20mm to 290mm and backing paper widths from 20mm to 130mm, making it suitable for diverse products including vials, ampoules, perfume bottles, and cosmetic samples.

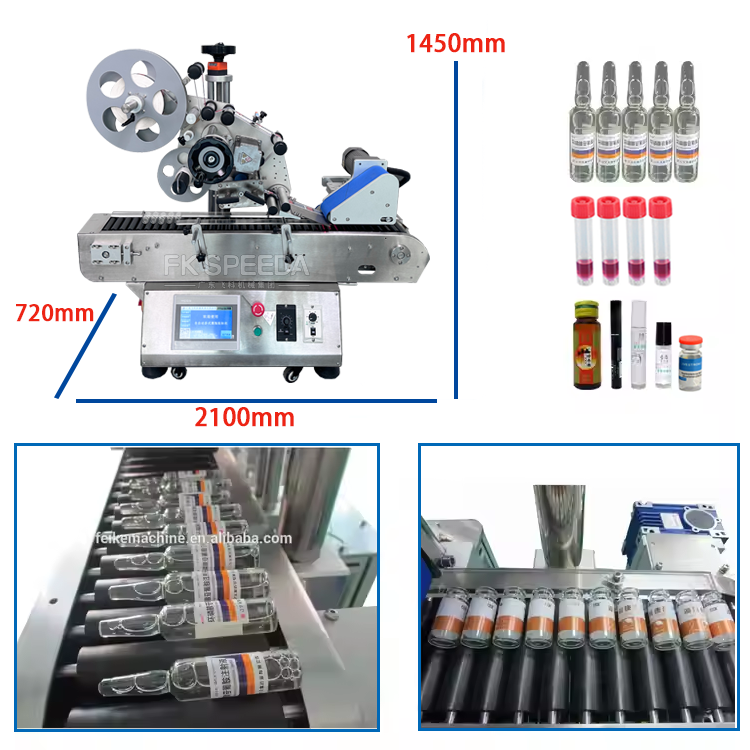

• Compact Space-Saving Design: With a desktop footprint of approximately 2100mm×720mm×1450mm and a lightweight 68KG build, this machine integrates seamlessly into existing production lines without requiring extensive floor space, ideal for workshops with limited area.




  2.Technical Specifications


  Machine Type	FK608
  Labeling Accuracy	±1mm (excluding product and label errors)
  Labeling Speed	100～300 pcs/min (depends on product & label size)
  Applicable Product Diameter	φ10mm～φ30mm
  Applicable Label Size (L×W)	Length: 20mm～290mm; Width (backing paper): 20mm～130mm
  Machine Weight	68KG
  Machine Size (length*width*height)	Approx. 2100×720×1450mm
  Power Supply	220V/50(60)HZ
  Machine Dimensions (L×W×H)	Approx. 2100×720×1450mm

3.Application Scenarios

The FK608 is a specialized solution engineered for high-precision labeling of small cylindrical containers across numerous industries:

• Pharmaceutical Industry: Ideal for labeling vials, ampoules, injection bottles, and small medicine containers. The machine's precision ensures critical drug information and regulatory codes are accurately applied, meeting strict pharmaceutical packaging standards.

• Cosmetics & Personal Care: Perfect for perfume samples, essential oil bottles, lip gloss tubes, and small cosmetic containers. The gentle handling mechanism ensures product integrity while maintaining pristine label appearance for premium branding.

• Food & Beverage: Suitable for applying ingredient labels, nutritional information, and barcodes to small sauce bottles, seasoning containers, and sample-sized products. High-speed operation supports large-volume production demands.

• Laboratory & Research: Effectively labels reagent bottles, sample vials, and test tubes used in laboratories and research facilities. Consistent label placement ensures proper identification and traceability.

• Chemical Industry: Applies warning labels, safety information, and product identification to small chemical containers and industrial sample bottles, ensuring regulatory compliance and workplace safety.










  FAQ

• Q1: How do I switch between different bottle sizes?
  A: The FK608 features tool-free adjustment on all critical parts. Simply loosen the relevant knobs, adjust the feeding device, conveyor guides, and labeling head to match your new bottle diameter, then tighten. The entire changeover takes just minutes.

• Q2: What causes labeling inaccuracy on round bottles?
  A: Common causes include inconsistent bottle diameter, incorrect bottle positioning in the feeding device, or improper synchronization between conveyor speed and label dispensing. Ensure bottle quality is consistent and recalibrate using the one-click parameter calculation function.

• Q3: How do I maintain the SICK label sensor?
  A: The SICK sensor requires minimal maintenance. Regularly clean the sensor lens with a soft, dry cloth to remove dust or adhesive residue. Avoid using solvents. If sensitivity issues arise, refer to the manual for simple recalibration procedures.

• Q4: Can this machine handle very small vials under 10mm diameter?
  A: The standard FK608 is optimized for φ10mm-φ30mm. For diameters smaller than 10mm, we offer customized solutions. Please contact our engineers with your specific product dimensions for a tailored recommendation.

• Q5: What after-sales support do you provide?
  A: We offer one-year warranty and lifetime maintenance. Replacement of broken parts due to quality issues is free of charge (excluding quick-wear parts). We provide lifetime spare parts supply and technical support, plus video instructions and manuals with every machine.
