Functional characteristics
◆ Stable card separation: Utilizing advanced double-pulley friction separation mechanism, the separation rate is much higher than that of ordinary separation devices and is more stable;
◆ Wide application range: Capable of labeling various sizes of cards, paper sheets, and other items, suitable for labeling of unfolded paper boxes;
◆ Stable labeling accuracy: Using a top-pressing roller to touch the workpiece, the conveying is smooth without warping, ensuring the labeling accuracy;
◆ Intelligent control: Automatic photoelectric tracking, featuring automatic labeling without objects, automatic correction for no labels, and automatic label detection to prevent missed labeling and label waste;
◆ High stability: The advanced electrical control system composed of Panasonic PLC, Panasonic touch screen, Panasonic Visio, and German Sieck brand photoelectric eyes supports the equipment to operate 7x24 hours;
◆ Has fault alarm function: Production counting function, power-saving function, production number setting prompt function, and parameter setting protection function.
Technical Specifications
| Machine Type | FK812 |
| Labeling Accuracy | ±1mm (excluding product and label errors) |
| Applicable Product Size | Length: 40~400mm; Width: 40~200mm; Height: 0.2~10mm |
| Capacity(pcs/min) | 40-120 pcs/min (depends on product size) |
| Applicable Label Size | Length: 10~150mm; Width (Backing Paper): 15~130mm |
| Applicable Label Roll Size | Inner Diameter: Ø76mm; Outer Diameter: ≤Ø300mm |
| Power Supply | 220V/50HZ |
| Machine Dimensions | Approx. 2000mm × 780mm × 1400mm |
| Label Roll | ID: Ø76mm;OD:≤260mm |
| Machine Weight | Approx. 270Kg |
FAQ

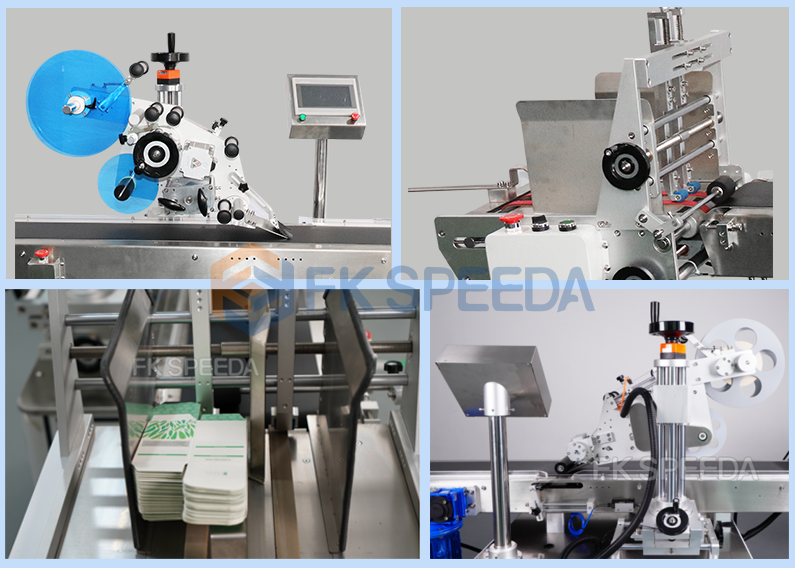

Q1: How does the automatic card separator work?
A: The paging device uses an OPG speed motor to feed cards from the bottom of the stack one by one onto the conveyor belt. The separator is adjustable for different card thicknesses and ensures consistent spacing between cards for reliable labeling without jams or double-feeding.
Q2: Can this machine handle different card sizes on the same production line?
A: Yes, the FK812 features tool-free adjustments on all critical mechanisms. Simply adjust the card separator guides, conveyor guardrails, and recall saved parameters from the touch screen. Complete changeover between different card sizes typically takes 5-10 minutes.
Q3: What is the two-speed labeling system and why is it important?
A: The two-speed system divides each labeling cycle into high-speed pre-peeling and low-speed final application phases. This allows part of the label to be ready before the card arrives (optimizing cycle time) while ensuring precise placement at reduced speed for maximum accuracy.
Q4: What causes cards to jam in the separator?
A: Common causes include incorrect separator height adjustment, worn friction pads, or cards with inconsistent thickness. Ensure the separator is properly adjusted for your card thickness, check for wear on feed components, and maintain consistent card quality for optimal performance.
Q5: Can this machine apply transparent labels?
A: The standard SICK label sensor works best for opaque labels. For transparent or clear labels, we recommend upgrading to a specialized transparent label sensor or requesting labels with detection marks (black marks or holes between labels) for reliable detection.
