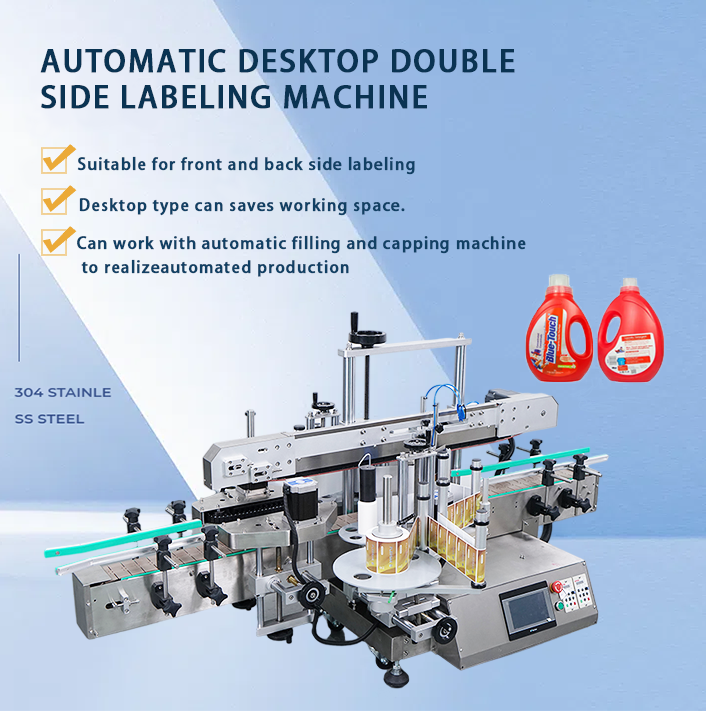

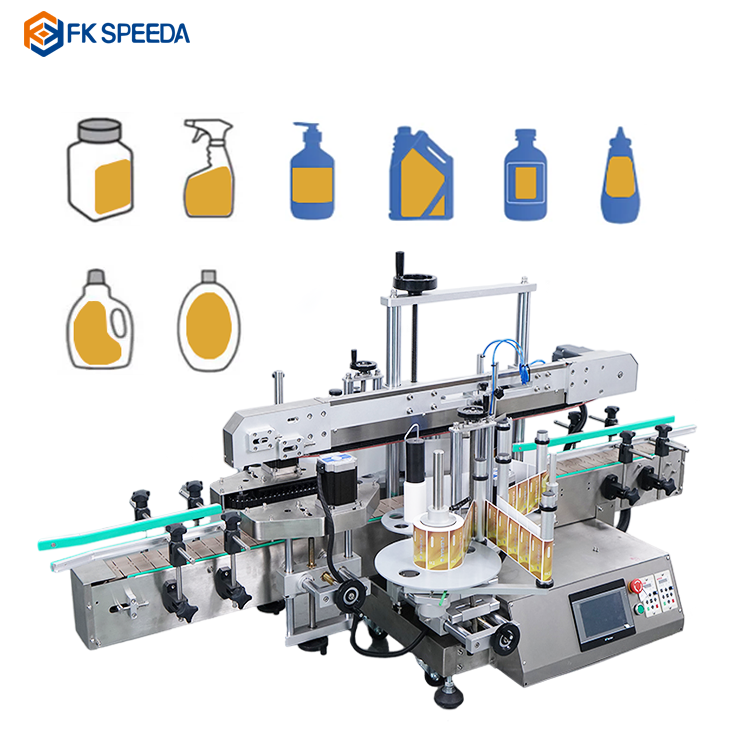

High Precision Labeling
Equipped with a photoelectric tracking system and ±1mm labeling tolerance, the machine ensures accurate placement every time. The no-label no-labeling function prevents waste, while automatic label correction reduces downtime.
Flexible Bottle & Label Compatibility
Suitable for bottles from 30–250mm in length and labels from 15–200mm, the machine can be customized to accommodate various shapes and sizes. It supports both full-wrap and semi-circle labeling.
Space-Saving Desktop Design
Made of 304 stainless steel, the compact structure is ideal for workshops with limited space. Despite its small footprint, it delivers industrial-grade performance with a speed of 30–100 pcs/min.
Easy Integration into Production Lines
Optional accessories like the automatic turntable bottle unscrambler and ribbon coding unit allow seamless connection with upstream and downstream equipment for fully automated operation.

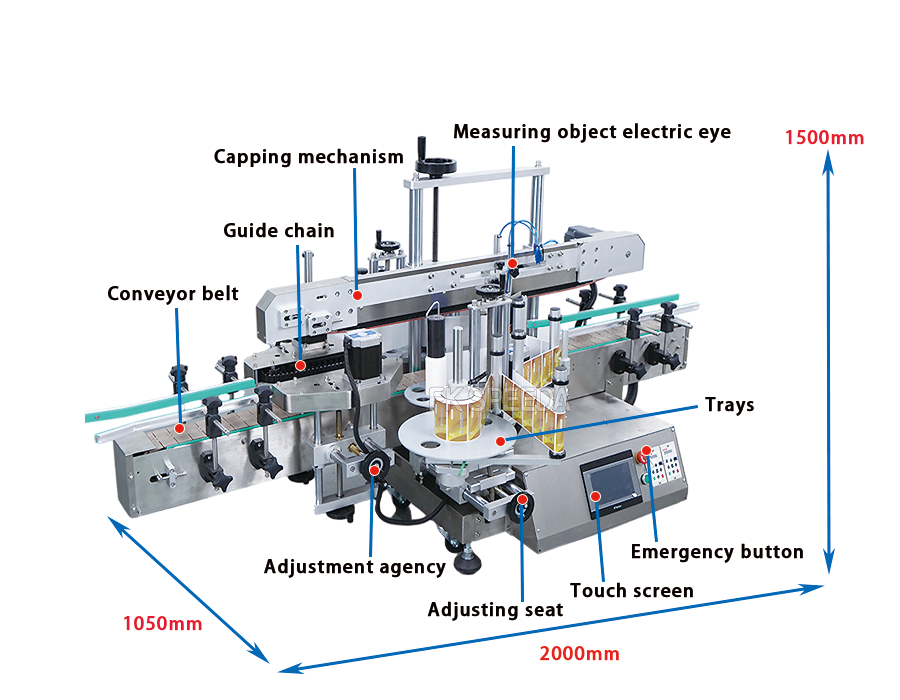

Stable Conveying & Adjustment System
Features a synchronous guide chain and elastic pressure topping mechanism to stabilize product movement and eliminate height errors. The 3-horizontal-bar adjustment structure allows quick changeovers
Technical Specifications
| Model | FK622 |
| Label Specification | Adhesive sticker, transparent or opaque |
| Power Supply | 220V 50HZ |
| Container size | Lengh: 40-400mm; Width: 40-200mm; Height:0.2-150mm |
| Suitable Label Size (mm) | L:15–200 / W(H):15–160 |
| Labeling speed | 20-40 Pcs/MIn |
| Labeling precision | ±1mm |
| Machine size (L *W* H) | 2000×1500×1050 mm |
| Machine Weight | 240 kg |
Pharmaceutical Industry: Ideal for labeling medicine bottles, vials, and round containers with high precision and hygiene standards.
Food & Beverage: Suitable for sauce bottles, beverage containers, and seasoning jars requiring front/back or wrap-around labels.
Daily Chemicals: Perfect for shampoo bottles, lotion dispensers, and cleaning product containers with various shapes.
Cosmetics: Handles small round bottles for serums, creams, and essential oils with delicate labeling needs.
Automated Production Lines: Can be integrated with filling, capping, and coding machines for end-to-end automation.
Q1: Can this machine label both front and back sides of a bottle?
Yes, it is specifically designed for front and back side labeling, and also supports full-wrap labeling for round bottles.
Q2: Does it support printing batch numbers and expiry dates?
Yes, an optional hot ribbon coder can be installed to print production dates and batch numbers online during labeling.
Q3: What is the minimum order quantity?
Typically, 1 unit is accepted for trial orders. We also offer customization based on bottle and label specifications.
Q4: How long does delivery take?
Standard models are delivered within 7–10 working days after payment. Customized machines may take 15–20 days.
Q5: Do you provide after-sales support?
Yes, we offer technical support, spare parts supply, and online video guidance for installation and troubleshooting.
