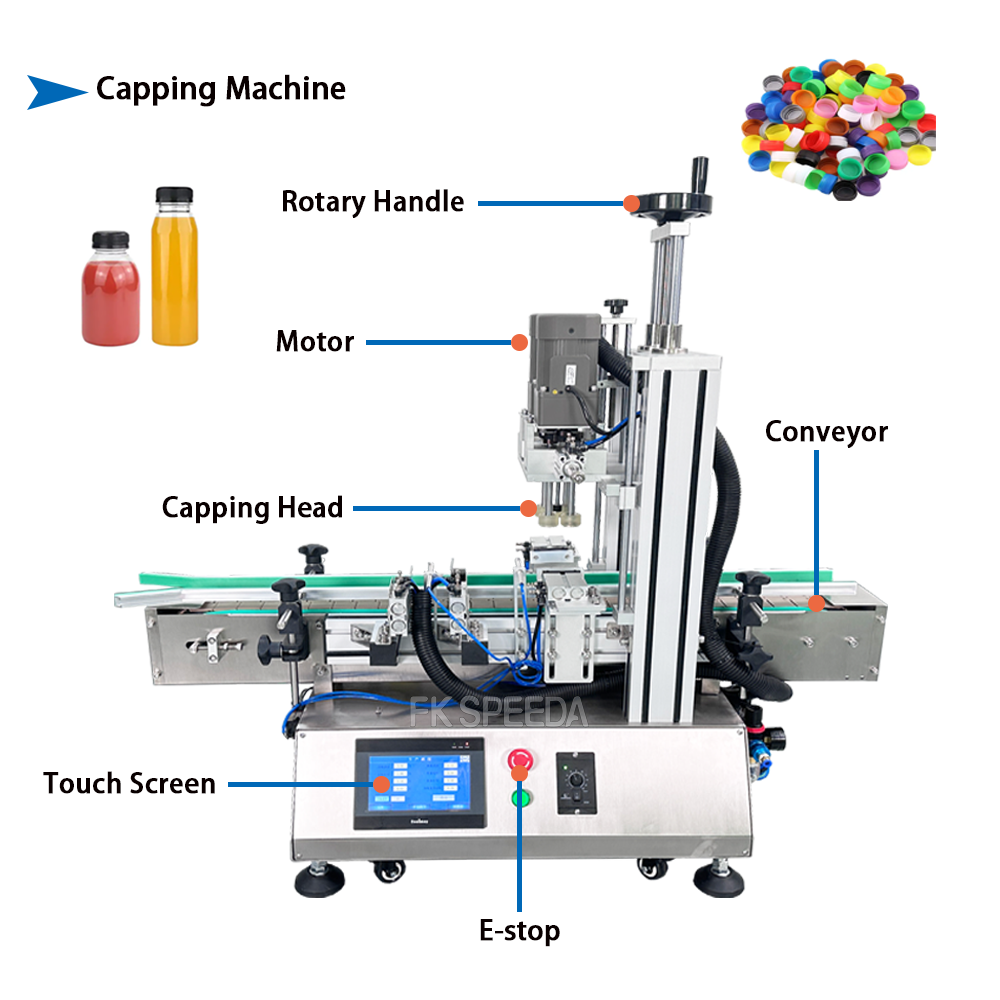

Introductions:
Electrical automatic control： and the good quality pneumatic components used in pneumatic components have good stability and more reliable quality; equipped with a cap screw positioning device, the cap is standard, and the operation is convenient;
The cap range and cap screw speed are adjustable：and can be rotated in various shapes The cap screwing speed is as high as 30 bottles per minute, which effectively improves the production efficiency; at the same time, the tightness can also be adjusted according to needs.
Using an intelligent computer operation panel: the panel is simple andeasy to operate withnumerous functions, and the operation is very convenient.
The height of the bottle can be adjusted up and down easily and freely. The all-stainless steel body is anti-corrosive and easy to clean.
Specification:
| Working Air Pressure | 0.5 MPa |
| Equipment power supply | 220V 50/60Hz(Can be customized) |
| Suitable filling diameter (mm) | >12mm |
| Filling material | Materials other than powders, particles and very viscous liquids |
| Filling Tolerance | ±l% |
| Capping speed | 20-35 pieces/minute (e.g. 20-60 pieces/minute with servo motor) |
| Additional functionality | Anti-drip, anti-splash and anti-wire drawing; High precision; Will not corrode |
| N.W (KG) | 45KG |
| Cap Diameter | 20-80 mm |
| Machine Dimensions | 1200*650*1200 mm (Length*Width*Height) |
Product Description
This machine is used for automatic capping of plastic bottles and glass bottles in cosmetics, food and beverage, pesticide and fertilizer, chemical industry,Can be applied to a variety of bottle types, high production efficiency.
